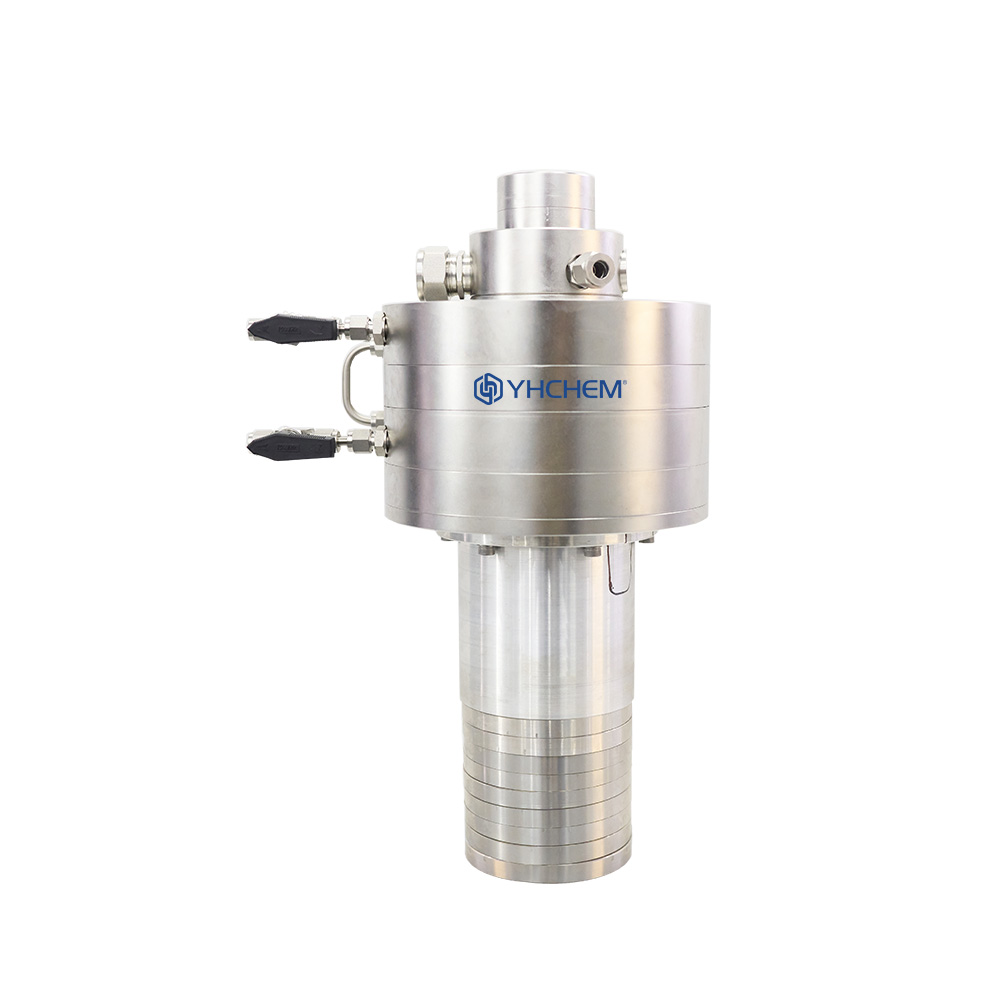

MODEL:YMC Series

Quick Overview:

YHCHEM continuous flow microreactor uses a unique internal structure to form rapid turbulent flow of internal mate

Description& Specification Clients' Cases Structure Features Details Relative Equipment

Description& Specification

YHCHEM continuous flow microreactor uses a unique internal structure to form rapid turbulent flow of internal materials, which can improve fluid mixing, enhance mass transfer and heat transfer, and is suitable for multi-phase reactions and reactions under high-risk or harsh conditions. According to different scenarios Providing one-stop customized services aims to shorten reaction time, reduce resource waste, improve product quality and purity, eliminate safety risks, reduce environmental pollution, and achieve seamless scale-up from laboratory to industrial production. Yuanhuai continuous flow microreactor can perform reactions under a variety of different reactor types and conditions. The modular system components are flexible and easy to use, and are suitable for sulfonation, format, hydrogenation, nitration, oxidation, esterification, and diazotization. Such reactions are widely used in fine chemicals, pharmaceutical intermediates, nanomaterials, polymer materials and other industries.

Clients' Cases

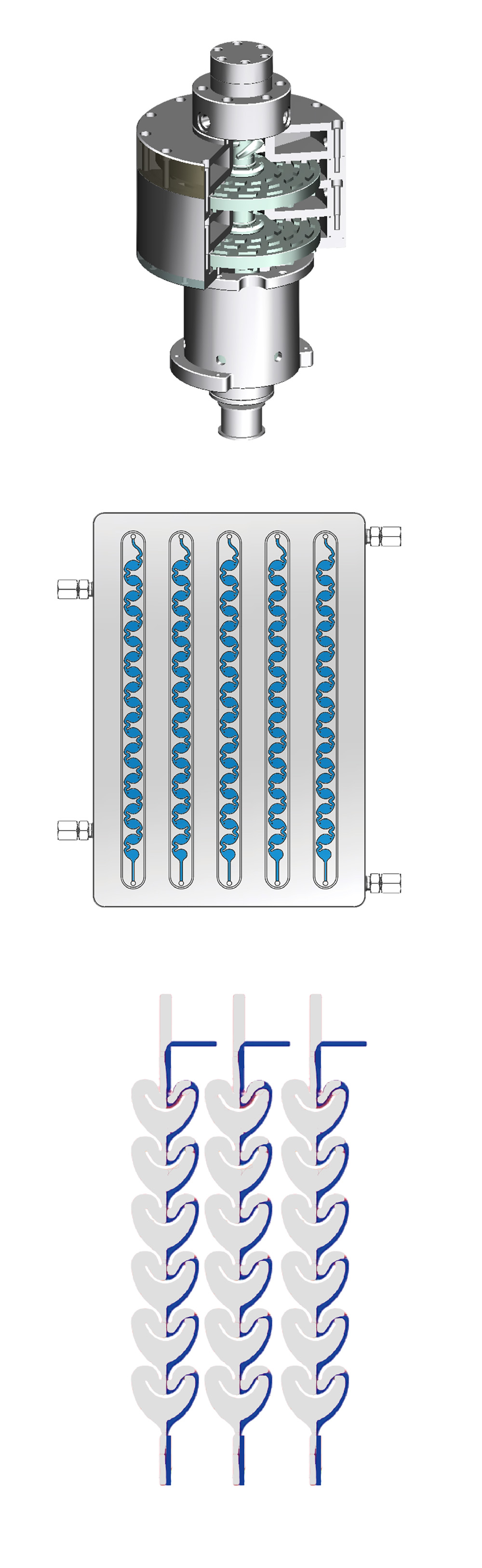

Structure

Features

The reactor has a small volume and a liquid holding capacity of 10~1000ml
Large specific surface area, high transfer rate, short contact time, and few by-products
Stainless steel 316L material, acid and alkali resistant, corrosion resistant
High flux, plate reactor flux ≥10L/min
Flow is stable, fluctuation ≤0.1% (pure water test)
High working pressure, silicon carbide and glass materials can reach 2.0MPa, stainless steel or other metals can reach 10MPa
The operating temperature range is -70℃~300℃
It has high safety, and a large amount of heat can be removed in time to ensure that the reaction temperature is maintained within the set range, minimizing the possibility of accidents
Solid-liquid reaction can be achieved, materials are mixed evenly, and complete reaction can be truly achieved through particles and powders with a diameter of <0.1mm

Details

Relative Equipment
