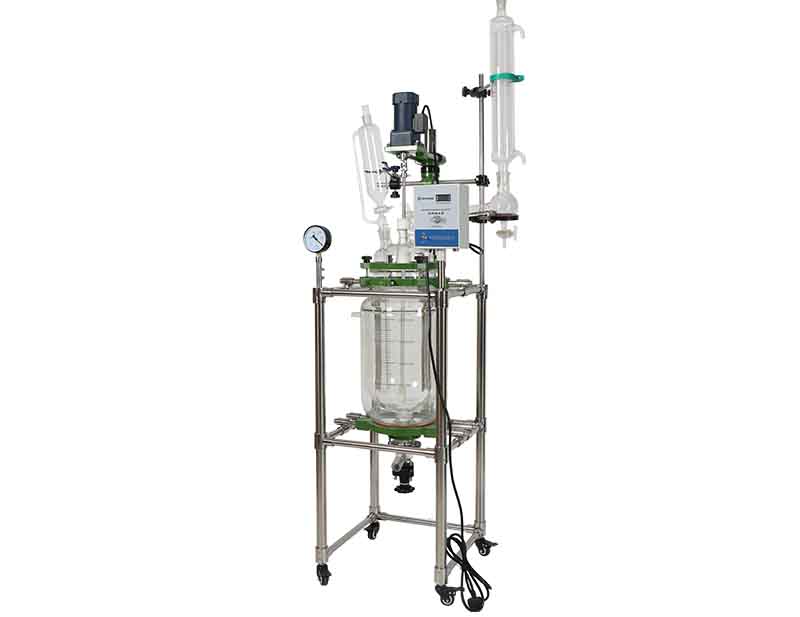

MODEL:JGR-20L

Quick Overview:

A jacketed vessel is a container that is designed for controlling temperature of its contents, by using a coolin

Description& Specification Clients' Cases Structure Features Details Relative Equipment

Description& Specification

A jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. The jacket has ability to permits the uniform exchange of heat between the fluid circulating in it and the walls of the vessel.

?JGR-series jacketed glass reactors are designed for reaction and mixing of different types of materials under a specific adjustable temperature and vacuum condition. The reaction lid has different functional ports which allow users to perform different purposes such as adding material to the vessel at a controlled speed, measure the temperature of material, add powder or solids to the vessel, recover the distilled material and so on. The lid is fully customizable according to clients' requirements.

Clients' Cases

Structure

Features

●Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculation fluid temperature and gives you best control over your work. It also helps prevent frost to form on the outside of the vessel, allowing you to see clearly into your material.

●Solvent-resistant PTFE on all sealing components ensures long time durability and operation.

●All glassware is hand-made from food grade high borosilicate 3.3 glass that is heat/cold/corrosion-resistant.

●Adjustable stirring rate provides great torque or high speed.

●Patented PTFE stirring rod bearing for reliable and quiet operation.

●Optional multi-layer stirring blades for optimal reaction results.

●Wide range of temperature operations, from-60°C to 200°C.

●Large condenser cooling surface for exceptional condensation performance.

●Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.

●Easily visual operation with digital speed and temperature displays.

●Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

●Easy-to-install modular design for exceptional ease and low cost of maintenance

●Zero dead space bottom valve design
